Mobile phone board
Craft show
| Layers | 10 layer |
| Product mix | 2+6+2 |
| Board thickness | 0.7mm |
| Material | EM-285 |
| Line width / space | 0.05/0.05mm |
| Minimum laser drilling aperture | 0.1mm |
| Surface treatment | Sink gold+OSP |
As smart phones become lighter, thinner and more intelligent, a higher requirement is posed for the display technology and the processing capacity of the data transceiver. In addition, the diversified use and light weight also promote the printed circuit board to place more guide wires in a limited area, and develop towards thin wire width, dense wiring, and sophisticated processes.
We have rich experience in the production of HDI products, and the products of Zhuhai F2 are mainly applied in Automotives, Mobile Phone, Optoelectronics fields, etc.
Craft show
| Layers | 10 layer |
| Product mix | 2+6+2 |
| Board thickness | 0.7mm |
| Material | EM-285 |
| Line width / space | 0.05/0.05mm |
| Minimum laser drilling aperture | 0.1mm |
| Surface treatment | Sink gold+OSP |
Craft show
| Layers | 10 layer |
| Product mix | 2+4+2 |
| Board thickness | 0.8±0.8mm |
| material | EM-285 |
| Line width / space | 0.06/0.063mm |
| Minimum laser drilling aperture | 0.1mm |
| Surface treatment | ENIG |
Craft show
| Layers | 8L |
| Product mix | 2+4+2 |
| Board thickness | 0.13+0.018/-0.018mm |
| material | EMC EM-285 |
| Line width / space | 0.08/0.05mm |
| Minimum laser drilling aperture | 0.085±0.01mm |
| Surface treatment | Sink gold |

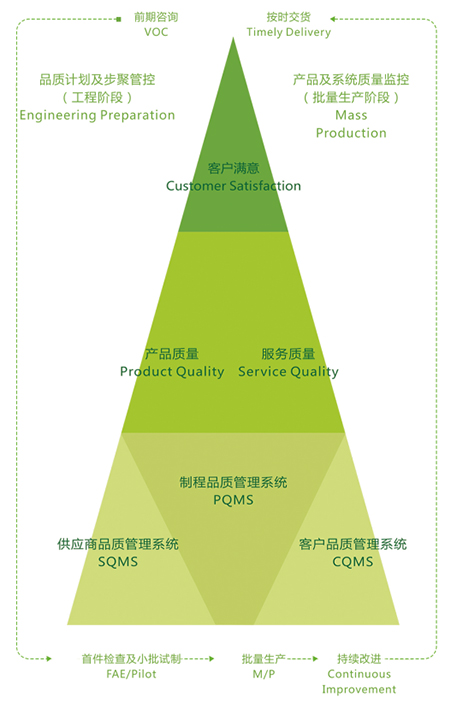

We use raw materials from world famous brands, have established incoming material inspection regulations that comply with international and customer standards, constantly trace and promote supplier quality improvement activities, and build and maintain strong cooperation with suppliers.
Quality products are made, not tested. We have standardized production process and detailed operation instructions for each process of the production line to ensure that the operation specifications and operation standards are correctly implemented.
We strictly check and control the shipment quality according to the international standards and customer standards, timely follow up the product quality performance after shipment, and take quick and effective improvement actions on the customer
Responsible for managing the supplier and incoming materials
Responsible for promoting all systems of the company as well as the maintenance and the import of new customers
Responsible for the first article inspection of the process, the patrol inspection, and taking the lead in improving process abnormality and managing defective products
Responsible for monitoring the solution in the production line and the reliability of products
Responsible for the inspection before delivery
Responsible for after-sales service
The products of Zhuhai F1 are mainly applied in automotives, Mobil phone and optoelectronics, and other fields
